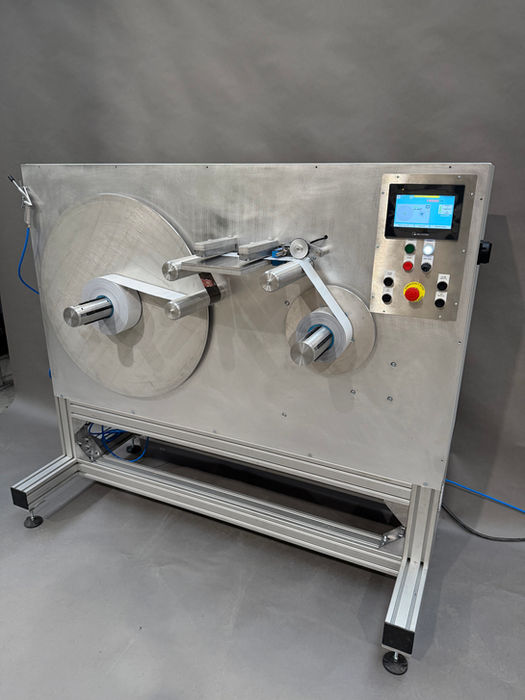

VTR 180

HERE is our latest innovation, the VTR 180. VTR stands for Vertical Table Rewinder with a width of 180-200 mm. The two airshafts with disks will make the material run smooth and without any resistance through the machine. Optional both direction winding is one of the possibilities.

This will make this VTR superb for delicate materials, like PE, PP and other PVC materials. The VTR can be placed on a table, or on an optional frame to meet your demands.  Splice clamps make sure that your materials can easily be put together on the splicing-table. The touchscreen will make the VTR 180 easy to use, this is multilingual.

Any questions, please don’t hesitate to contact us.

Specifications

Specifics
Details
Air
6 bar/ 250 l/min
Servo Driven
Driven by Servo
Electrical
400 VAC/ 16A
Speed
± 100-150 m/min
Other On/Rewind Sizes
On request
Width
180-200 MM
Max. Unwinder Diameter
440MM or 35 KG Other sizes on request
Rewind Shaft Pneumatic
76 MM
